Handling pipeline failures

1.1. ⬇️ Extract & Load (E)

In this first phase, we move data from various external sources into our data lake. These sources include APIs, SQL databases (e.g., Postgres, MySQL), and other systems. The data is ingested and registered in our Glue Data Catalog, enabling downstream discoverability and schema management.

1.2. ⚙️ Transform (T)

Once the raw data lands in the lake, we use DBT to transform it into clean, structured, and enriched datasets. These transformations include filtering, joining, and applying business logic to create models that are ready for analysis or operational use.

1.3. ⬆️ Upload (U)

In the final step, we push processed data back into third-party systems. This might include CRM platforms, advertising tools, or other business systems that require fresh data to function effectively. This step ensures the data lifecycle comes full circle, making insights actionable.

1.4. ETU Stage Summary

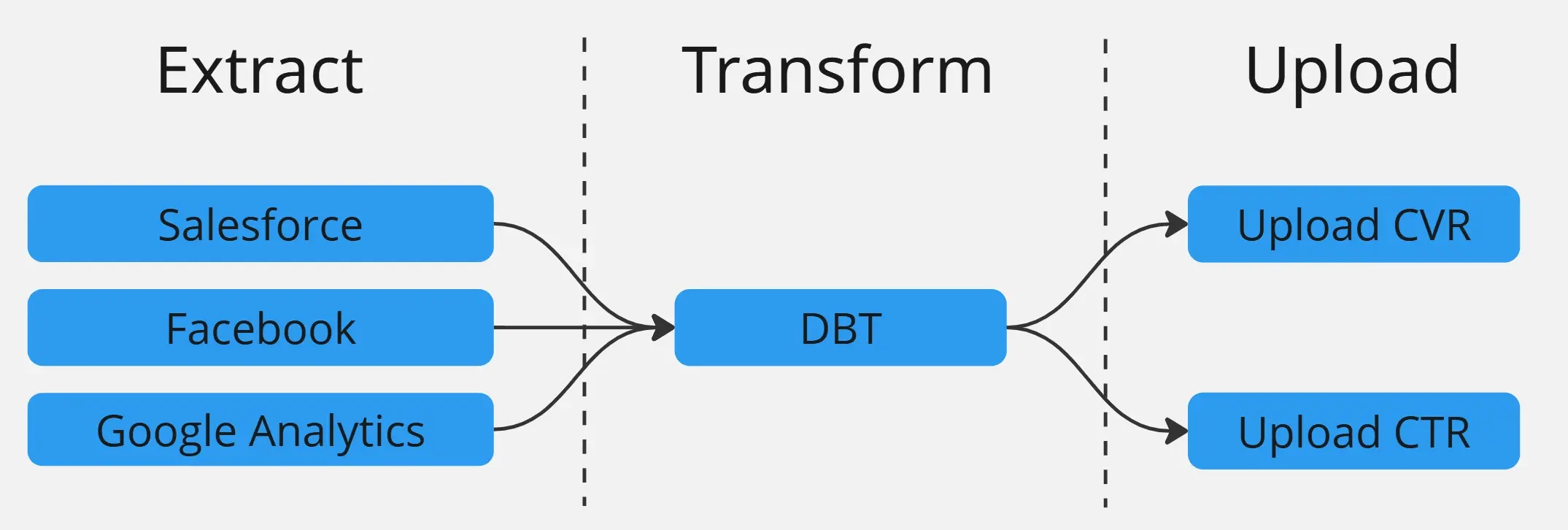

Here is a really simple example of how our pipeline looks like:

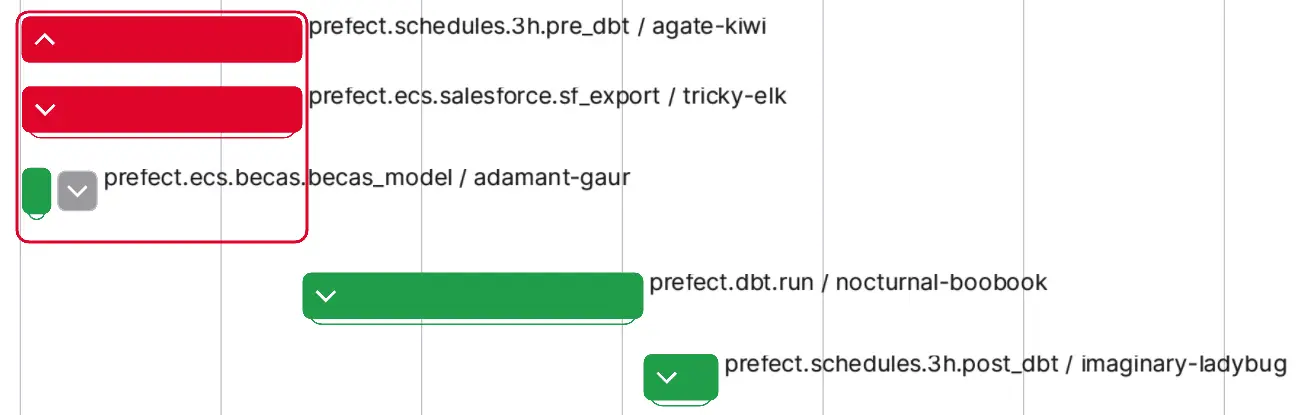

2.1. Failures in Extract & Load (E) ⬇️

Data needs to be successfully extracted and landed in the lake before DBT transformations can begin. These upstream extract jobs — often orchestrated outside DBT — are susceptible to failures, and how we handle those failures directly impacts downstream processing.

Two main options arise:

1. Exclude failed topics with an exclude (like dbt build --exclude tag:salesforce)
2. Run DBT as usual without exclusions

While skipping failed upstream tasks with option 1 might seem like a resource optimization, it introduces significant risks. DBT transformations are usually cheap to run — especially with incremental models — and skipping them can create inconsistencies.

For example, I have a job that transcribes audios (see Process Calls with Open AI). This job can partially succeed — transcribing some files but failing others due to server timeouts. To avoid redundant processing, I use a LEFT ANTI JOIN with the DBT-generated transcriptions table.

However, when the transcription job partially failed and I excluded its tag in the DBT run, the corresponding models weren’t updated. This led to reprocessing already-transcribed files, inflating compute costs and duplicating results.

2.2. Failures in Transform (T) ⚙️

The Transform step (T) is where DBT takes raw data from the lake and builds structured models. If something goes wrong in transformation, pushing bad or incomplete data into external systems can create inconsistencies or break business processes. For example, syncing users but not sessions could result in mismatched reporting.

DBT assigns one of six statuses to each node:

• error: a model failure
• fail: a test failure (with fail severity)
• warn: a test problem with warn severity
• skipped: a node skipped due to previous errors
• success: a model that ran successfully
• pass: a test that met requirements

from prefect.context import get_run_context

def get_flow_run_id():
    context = get_run_context()
    if hasattr(context, "flow_run"):
        return str(context.flow_run.id)
    elif hasattr(context, "task_run"):
        return str(context.task_run.flow_run_id)
    else:
        msg = "get_flow_run_id must be called within a Prefect flow or task context."
        raise RuntimeError(msg)

QUERY_FAILURES

WITH executions AS (
    SELECT invocation_id
    FROM nt_bronze__metadata.dbt_execution
    WHERE p_extraction_date >= DATE '{yesterday:%Y-%m-%d}'
        AND flow_run_id = '{flow_run_id}'
), run_res AS (
    SELECT *
    FROM nt_bronze__metadata.dbt_run_results
    WHERE p_extraction_date >= DATE '{yesterday:%Y-%m-%d}'
)
SELECT
    run_res.status,
    run_res.unique_id
FROM executions
LEFT JOIN run_res
    ON executions.invocation_id = run_res.invocation_id
WHERE relation_name IS NOT NULL

get_dbt_results

import asyncio
from prefect import get_run_logger
from common.glue import query_athena # Out of scope

STATUS_MAPPING = {
    "error": -1,
    "fail": -1,
    "warn": 0,
    "skipped": 0,
    "success": 1,
    "pass": 1,
}

@task(name="prefect.dbt.run.get_failures")
def get_dbt_results(env, flow_run_id):
    logger = get_run_logger()
    logger.info(f"Checking if there were DBT failures for {flow_run_id=}")

    yesterday = date.today() - timedelta(days=1)
    query = QUERY_FAILURES.format(yesterday=yesterday, flow_run_id=flow_run_id)
    df = query_athena(query)

    df["level"] = df["status"].map(STATUS_MAPPING)

    if errors := df.loc[df["level"] < 0, "unique_id"].to_list():
        logger.warning(f"There were {len(errors)} failures in DBT: {errors=}")
    else:
        logger.info("There were no failures in DBT")

    return df

are_results_good

from typing import List
from typing import Optional

from prefect import get_run_logger
from pydantic import BaseModel
from pydantic import computed_field

class DbtNode(BaseModel):
    dbt_type: str
    name: str
    level: int = LEVEL_SUCCESS

    @computed_field
    @property
    def full_name(self) -> str:
        return f"{self.dbt_type}.dbt_northius.{self.name}"

    def __repr__(self):
        return f"{self.dbt_type.title()}(name='{self.name}', level={self.level})"


class Model(DbtNode):
    dbt_type: str = "model"


class Test(DbtNode):
    dbt_type: str = "test"


class DbtExpectations(BaseModel):
    models: Optional[List[Model]] = None
    tests: Optional[List[Test]] = None

    def get_all_unique_ids(self):
        models = {x.full_name: x.level for x in self.models}
        tests = {x.full_name: x.level for x in self.tests}
        return {**models, **tests}

def are_results_good(df, models=None, tests=None):
    logger = get_run_logger()

    if df is None:
        logger.error("Results are missing (df is None)")
        return True

    models = [{"name": x} for x in models] if models else []
    tests = [{"name": x} for x in tests] if tests else []
    dbt_expectations = DbtExpectations(models=models, tests=tests)

    logger.info(f"Expected results: {dbt_expectations}")
    desired_results = dbt_expectations.get_all_unique_ids()
    actual_results = df.groupby("unique_id").agg({"level": "min"}).to_dict()["level"]

    missing_nodes = []
    unwanted_outcomes = []

    for model, desired_level in desired_results.items():
        actual_level = actual_results.get(model)

        if actual_level is None:
            missing_nodes.append(model)
        elif actual_level < desired_level:
            unwanted_outcomes.append(f"{model} {actual_level=} {desired_level=}")

    if missing_nodes:
        logger.warning(f"{len(missing_nodes)} missing nodes: {missing_nodes=}")
    if unwanted_outcomes:
        logger.warning(
            f"{len(unwanted_outcomes)} unwanted outcomes: {unwanted_outcomes=}"
        )

    failure = missing_nodes or unwanted_outcomes
    return not failure

run_uploads

UPLOAD_JOBS = {
    ds.ds_export: {"models": ["leads_ds_id"]},
    salesforce.sf_upload_beca_scoring: {"models": ["sf__beca_model_score"]},
    salesforce.sf_upload_conversion_rate: {"models": ["conversion_rate"]},
}

async def run_uploads(flow_run_id, env: Literal["snd", "pro"] = "pro"):
    """Runs post-DBT jobs based on DBT validation results."""
    logger = get_run_logger()

    dbt_results = dbt.get_dbt_results(env, flow_run_id)

    jobs = []
    for func, expectations in UPLOAD_JOBS.items():
        if are_results_good(dbt_results, **expectations):
            jobs.append(func)
        else:
            logger.warning(f"Skipping {func=} because of DBT failures")

    await prefect_utils.run_flows_async(
        flows=jobs, flow_name="3h.post_dbt", env=env
    )

2.3. Failures in Upload (U) ⬆️

Failures in upload jobs need no special treatment since there are no jobs that depend on them.

3.1. Handling Sync Flows

This is how we can continue executing tasks whenever one fails:

from prefect import flow, task, get_run_logger

@task
def process_item(item: int) -> float:
    return 10 / item  # Replace with your actual logic

@flow
def main():
    logger = get_run_logger()
    items = [5, 2, 0, 1]  # Replace with your own data

    futures = {i: process_item.submit(i, return_state=True) for i in items}
    failures = []

    for item, state in futures.items():
        if state.is_completed():
            logger.info(f"Task succeeded for item={item}: result = {state.result()}")
        else:
            try:
                _ = state.result()
            except Exception as exc:
                logger.error(f"Task failed for item={item}: {type(exc).__name__}: {exc}")
                failures.append(f"{item} → {type(exc).__name__}: {exc}")

    if failures:
        summary = "\n".join(failures)
        raise RuntimeError(f"One or more tasks failed:\n{summary}")

This pattern gives your pipeline flexibility and resilience, helping you avoid total failure just because one piece breaks.

3.2. Handling Async Flows

Here’s how to run async flows concurrently while collecting and reporting failures:

import asyncio
from prefect import get_run_logger, states

def notify_and_raise(...): ...  # Omitted for brevity

async def is_failure(state):
    """Checks if it's a failed state."""
    return isinstance(state, states.State) and state.is_failed()

async def run_flows_async(flows, flow_name, env, version="latest", **kwargs):
    logger = get_run_logger()
    logger.info(f"Starting {flow_name=} with {len(flows)} flows.")

    tasks = [func(env=env, return_state=True, **kwargs) for func in flows]
    results = await asyncio.gather(*tasks, return_exceptions=True)

    failures = [
        (flow.__name__, state)
        for flow, state in zip(flows, results)
        if isinstance(state, Exception) or await is_failure(state)
    ]

    if failures:
        failure_msgs = [f"{name}: {state}" for name, state in failures]
        msg = f"{flow_name} failed ({len(failures)} failures):\n" + "\n".join(failure_msgs)
        notify_and_raise(env=env, version=version, entrypoint=flow_name, msg=msg)
        return states.Failed(message=msg)

    logger.info(f"{flow_name=} (with {len(flows)} flows) completed successfully!")
    return states.Completed()
