Serving python apps with nginx and gunicorn

Serving python apps with nginx and gunicorn

0. Intro

In order to serve a python web app hosted on a server there are some tools that you need to install and set up.

1. Basic schema

First of all you will need a Linux machine. Iโ€™d suggest you use an AWS EC2 instance. You can see Domain LogoCreating EC2 instances in AWS how to create one.

There are three main components needed for serving a python app:

  1. Web server
  2. WSGI
  3. Python app
  4. Supervisor

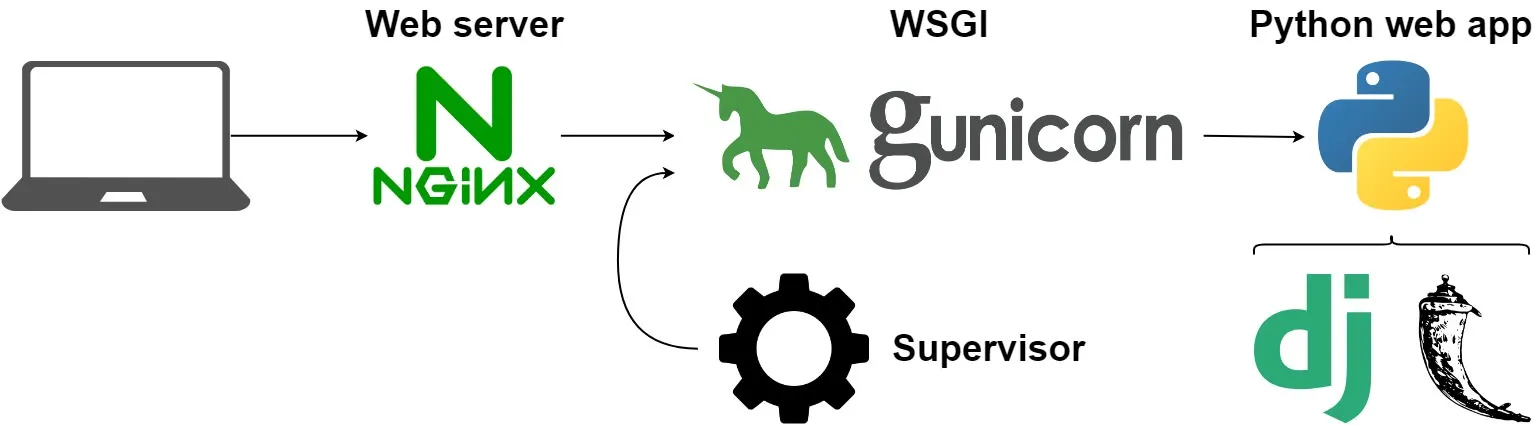

Architecture diagram

1.1 Web server

This component will handle the requests and among other things it will deal with static files (images, css, jsโ€ฆ). In this post we are going to use Domain LogoNginx since it is more commonly used for python. Another popular option is Domain LogoHttpd.

1.2. WSGI

Web servers cannot communicate directly with python apps so you need a Web Server Gateway Interface (Domain LogoWSGI). In this case we will use Domain LogoGunicorn because it is a simple solution. Another common choice would be Domain LogoUwsgi.

1.3. Python App

The idea of this post is to set up nginx and gunicorn. To test them you can create a very simple app using Domain LogoFlask. You can do the same with Domain LogoDjango or Domain LogoDash apps.

1.4. Supervisor

Domain LogoSupervisor is a system that allows users to monitor and control processes. This will make sure to restart the gunicorn process if it anything goes wrong. Without it you should do it yourself.

You can read more about Domain LogoWhy a web server and wsgi.

2. Installation

First you should create the flask app and test it. After you will install and configure both wsgi and supervisor in order to have a service to serve the app. Finally you will configure nginx to serve the content to the web.

2.1. Python app

First letโ€™s create the index.py with the app:

# Create html folder if neeeded
mkdir /var/www/html
cd /var/www/html

# Install requirements
pip3 install flask

# Create index.py with the app
nano /var/www/html/index.py

And paste the following code:

/var/www/html/index.py

from flask import Flask

app = Flask(__name__)

@app.route('/')
def index():
    return "Hello World"

if __name__ == '__main__':
    app.run(debug=True)

You can try it by running:

python3 index.py

You can now view it by going at XX.XXX.XXX.XXX:PORT (Use your EC2 IP and the port).

Default flask port is 5000. To try it you need to open the port.

2.1.1. Open EC2 ports (optional)

If you are using and AWS EC2 it is possible that you donโ€™t have the port 80 opened. You can do it with:

  1. Go to AWS console and then to the EC2 page. Use the sidebar to go to NETWORK & SECURITY/Security Groups.
  2. Find the security group of your EC2 instance and edit the Inbound rules.
  3. Add Custom TCP Rule with port 5000 (or the one you used).
  4. If you are opening a port for testing, remeber to close it back when you are done.

2.2. WSGI

Install gunicorn with:

pip3 install gunicorn

2.3 Install supervisor

sudo apt install supervisor -y

You will create an config file for your project, for example /etc/supervisor/conf.d/flask_test.conf:

sudo nano /etc/supervisor/conf.d/flask_test.conf

And write the following configuration:

/etc/supervisor/conf.d/flask_test.conf

[program:flask_test]
command = gunicorn index:app -b localhost:8000
directory = /var/www/html/
autostart = true
autorestart = true

index refers to the python file. app is the name of the flask app that is inside this file.

Then start supervisor:

sudo supervisorctl reread
sudo service supervisor restart

# Check the result
sudo supervisorctl status

2.4. Web server

2.4.1. Install and test nginx

To install nginx run:

sudo apt-get update
sudo apt install nginx -y

You can now view if nginx is serving content by going at XX.XXX.XXX.XXX (Use your EC2 IP). You will see the nginx default landing page:

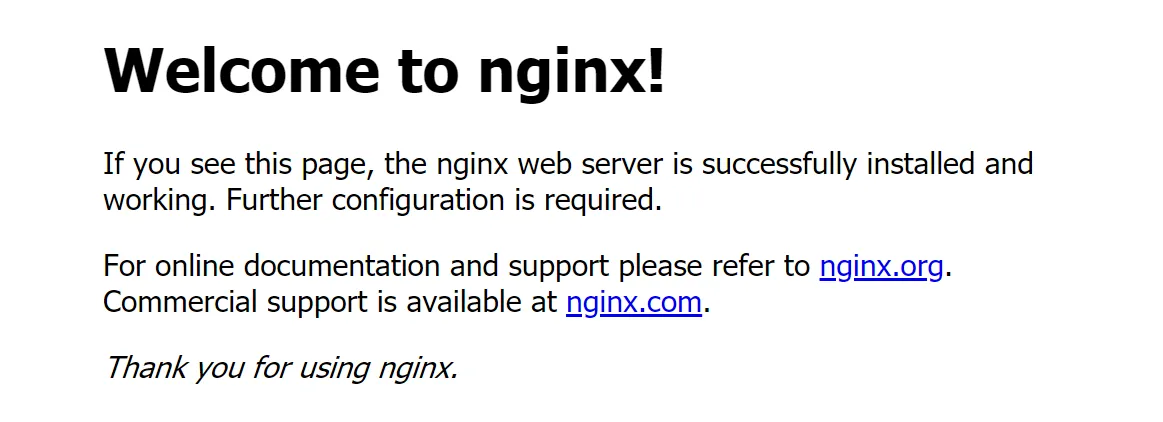

Welcome nginx

You will need the port 80 opened

2.4.2 Configure nginx

You should add a config file for your app (flask_test for example) inside the nginx sites-available folder. You should delete the default config file.

sudo rm /etc/nginx/sites-available/default
sudo nano /etc/nginx/sites-available/flask_test

And write the following configuration:

/etc/nginx/sites-available/flask_test

server {
    listen 80 flask_server;

    location / {
        proxy_pass http://127.0.0.1:8000;
    }
}

8000 should match the port defined at supervisor and 80 the port that you opened to test nginx.

Now you need a symlink in sites-enabled that points to the file you created before:

sudo rm /etc/nginx/sites-enabled/default
sudo ln -s /etc/nginx/sites-available/flask_test /etc/nginx/sites-enabled

And now you can start nginx:

sudo nginx -t
sudo service nginx restart

You can now go to XX.XXX.XXX.XXX and you should see the flask app Hello World message.

If everything is working remeber to close the ports that you opened only for testing.

3. Next steps

3.1. Configure nginx

The nginx configuration you used is really simple. For example you can set nginx to serve static files directly instead of passing through the flask app by:

/etc/nginx/sites-available/flask_test

server {
    listen 80 flask_server;

    location /static/ {
        root /var/www/html/;
    }

    location / {
        proxy_pass http://127.0.0.1:8000;
    }
}

For more info about Domain LogoHow to configure nginx.

3.2. SSL certificate

I strongly suggest you set up a SSL certificate for apps that are in production. You can learn how with Domain LogoHow to secure nginx with let's encrypt.

While working on this post I set this app for my first time. It is normal to encounter difficultes but I was able to sort it out, you can do it too!
